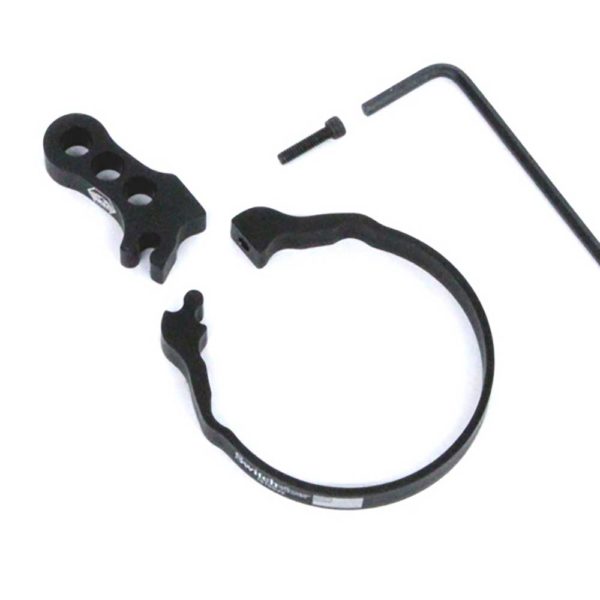

The SV1615 Switchview throw lever is pretty much a “must have” addition to any variable powered magnified optic. Like we’ve heard so many times before, “once you use one, you won’t be able to figure out how you ever got by without one before”!!!
Just like our entire line of standard and folding Switchview throw levers, the SV1615 Switchview throw lever is machined out of 6061-T6 aluminum. We also hard anodize all of our aluminum products to provide you many years of “hard use” no matter what you’re doing with your gear. We’re also proud to say that 100% of the Switchview product line is manufactured in the United States of America.
If you haven’t seen the “DSFD” (Double Screw Fold Down) version of this Switchview, you can check it out here.
Our DSFD Switchview throw lever is our definition of simplification. The two-screw design increases adaptability for a more precise fit on various scope brands and models.
We’ve integrated our new “folding” design into these new DSFD levers for several reasons. The main reason is it won’t hang up on stuff! Whether you’re using your rifle for hunting, competition, or work, you’ll find that the new folding design offers many benefits over our fixed levers.
We usually mount the Switchview so the lever folds back towards the rear of the gun. This way it will fold down when you’re stuffing it into a soft case, discarding it into a drop box in a competition or dragging it through the bushes and trees on a hunt. If you want it to be a little “stiffer” you can add a little tension to the screw that holds it in place.
If you want a little longer top or a little shorter top, we have one hole and three hole replacements as well. Check them our on our “lever top” page you can find here. https://www.switchviewusa.com/product-category/lever-top/
This Switchview throw lever fits scopes such as:
- Burris XTR 1-4×24, 1.5-6×40, 3-12×50, and 6-24×50 scopes,
- Burris Euro Diamond, XTR 1-4×24, 1.5-6×40, 3-12×50, 6-24×50 scopes,
- Bushnell Banner wide angle 3-9 scopes,
- Mueller 8-32x44TD scopes.
- Other scopes with similar dimensions.
* Please note – Bushnell / Burris indicates XTR and Burris Euro Diamond are the same ring, but this has not been confirmed yet. If you have a Euro Diamond, please call before ordering.
*Scope makers modify designs without notice. Measurement of scope magnification ring before ordering Switchview is recommended.*
Lever length: .880”.
Ring diameter 1.615″ not including dimensions for the scope’s index nub if present.
The lever needs .260″ of clearance between the scope body and the nearest object for proper operation.
Color: Anodized Flat Black.
